An issue of visualization

CommonRoad-IO
1

Dear all,

I tried to visualize generated path roll-out by following code:

path_point_list = []
for n_path in range(len(paths)):
    plt.figure(figsize=(25, 10))
    draw_object(scenario, draw_params={'time_begin': 0})
    draw_object(planning_problem_set)
    collision_free = collision_check_array[n_path]
    is_best_path = (best_index == n_path)
    for n_point in range(len(paths[n_path][0])):
        point_state = State()
        point_state.position = [paths[n_path][0][n_point], paths[n_path][1][n_point]]
        point_state.time_step = n_point
        path_point_list.append(point_state)
    path_traj = Trajectory(1, path_point_list)
    if collision_free and is_best_path:
        draw_object(path_traj, draw_params={'time_begin': 1, 'facecolor': 'g'})
    elif collision_free and (not is_best_path):
        draw_object(path_traj, draw_params={'time_begin': 1, 'facecolor': 'b'})
    elif (not collision_free) and (not is_best_path):
        draw_object(path_traj, draw_params={'time_begin': 1, 'facecolor': 'y'})
    else:
        print('Error!!!')
    plt.show()

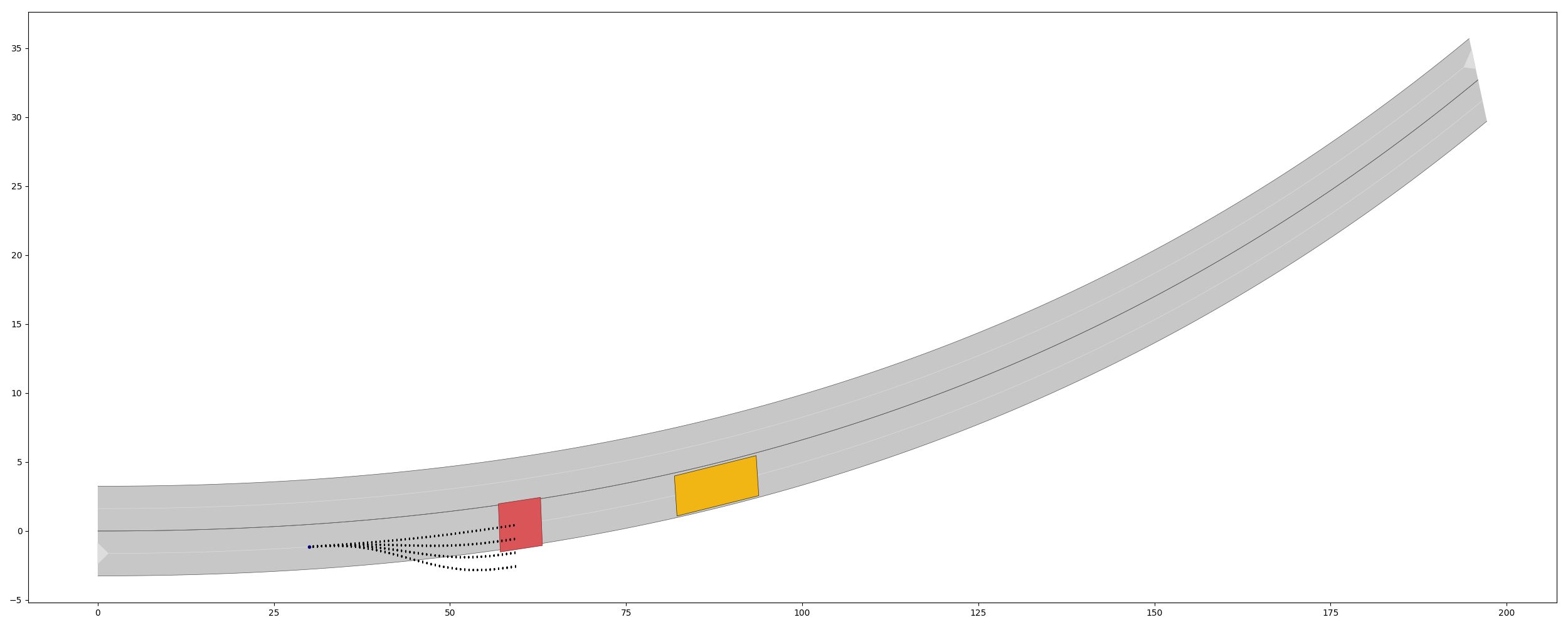

I have generated 7 paths, but only 4 are shown in commonRoad Visualization, some paths are covered by the road. And I could not change the color of path.

Do you have some suggestions for it?
Thank you!

image2500×1000 70.5 KB

image2500×1000 121 KB

BR
Kailin

2

Usually, this should not be a problem. From your example, it’s not straight forwards to see where you plot those 7 paths. Is inside the outer for-loop? If you provide a small running example it would be easier to help.

By the way, the ‘position’ of a state should usually be of type np.array() instead of a list, maybe that is causing some issues at some point.

3

Since only the colliding trajectories have been plotted, perhaps your collision_check_array function is working the other way around?

4

Thanks for reply,

I updated my code and the issue remains:

plt.figure(figsize=(25, 10))
path_point_list = []
draw_object(scenario, draw_params={'time_begin': 0})
draw_object(planning_problem_set)
for n_path in range(len(paths)):
    collision_free = collision_check_array[n_path]
    is_best_path = (best_index == n_path)
    for n_point in range(len(paths[n_path][0])):
        point_state = State()
        point_state.position = np.array([paths[n_path][0][n_point], paths[n_path][1][n_point]])
        point_state.time_step = n_point
        path_point_list.append(point_state)
    path_traj = Trajectory(1, path_point_list)
    if collision_free and is_best_path:
        draw_object(path_traj, draw_params={'time_begin': 1, 'facecolor': 'g'})
    elif collision_free and (not is_best_path):
        draw_object(path_traj, draw_params={'time_begin': 1, 'facecolor': 'b'})
    elif not collision_free :
        draw_object(path_traj, draw_params={'time_begin': 1, 'facecolor': 'r'})
    else:
        print('Error!!!')
plt.show()

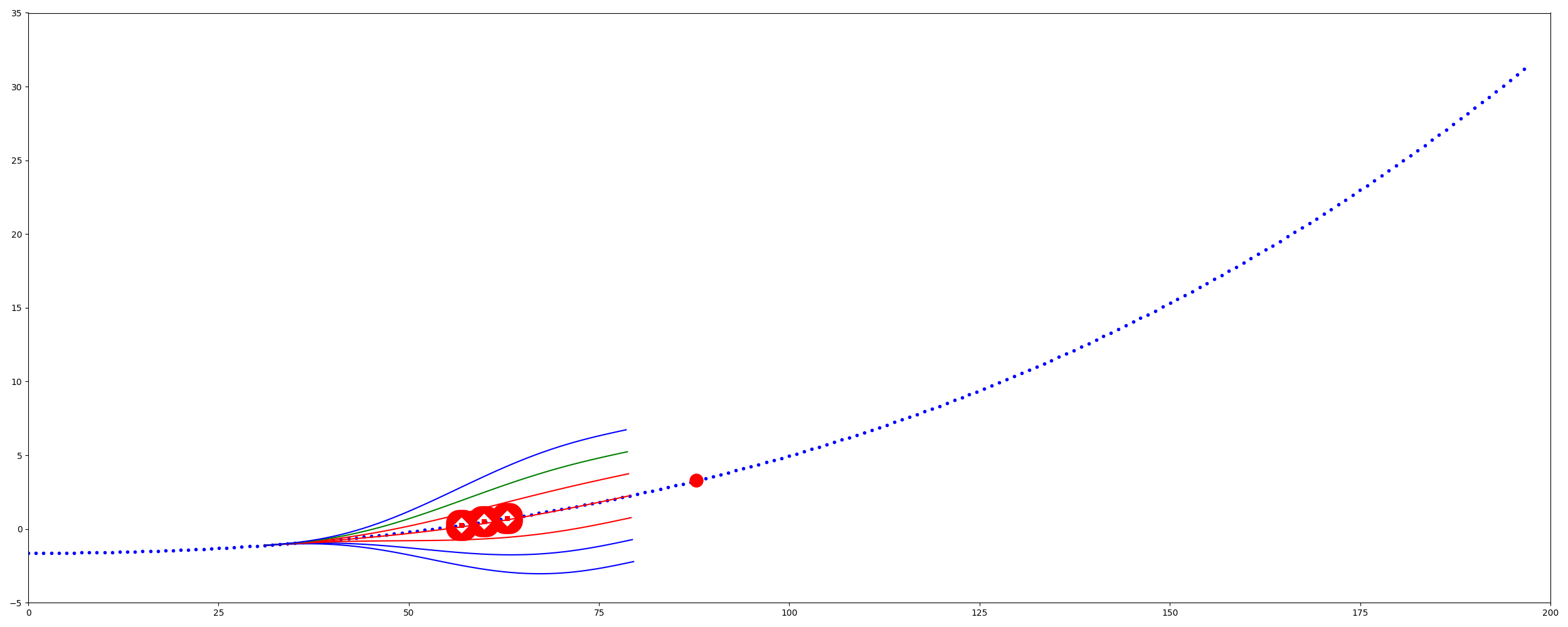

plt.figure(figsize=(25, 10))
waypoints_np = np.array(waypoints)
waypoints_x = waypoints_np[:, 0]
waypoints_y = waypoints_np[:, 1]
plt.scatter(waypoints_x, waypoints_y, c='b', marker='.')
c_g = goal_state_planning.position.center
plt.scatter(c_g[0], c_g[1], c='r', marker='o', linewidths='10.0')
parkedcar_box_pts_np = np.array(parkedcar_box_pts)
plt.scatter(parkedcar_box_pts_np[:, 0], parkedcar_box_pts_np[:, 1], c='r', marker='s', linewidths='30.0')

for n_path in range(len(paths)):
    collision_free = collision_check_array[n_path]
    is_best_path = (best_index == n_path)
    if collision_free and is_best_path:
        plt.plot(paths[n_path][0], paths[n_path][1], c='g')
    elif collision_free and (not is_best_path):
        plt.plot(paths[n_path][0], paths[n_path][1], c='b')
    elif not collision_free:
        plt.plot(paths[n_path][0], paths[n_path][1], c='r')
    else:
        print('Error!!!')

plt.xlim([0, 200])
plt.ylim([-5, 35])
plt.show()

image2500×1000 119 KB

image2500×1000 77.9 KB

I am glad to support it, how can I upload a simple example?

BR
Kailin

5

I was talking about a complete code example that I could run to identify your problem, you can just attach it to your comment. However, did you try to run your example without plotting the scenario to make sure the trajectories are plotted?

6

import os
from commonroad.common.file_reader import CommonRoadFileReader
import matplotlib.pyplot as plt
from commonroad.visualization.draw_dispatch_cr import draw_object
from commonroad.scenario.trajectory import Trajectory, State
import numpy as np

file_path = os.path.join(os.getcwd(), ‘ZAM_Over-1_1.xml’)
scenario, planning_problem_set = CommonRoadFileReader(file_path).open()

paths = [[[30.59469721032756, 31.19463916511536, 31.794657398047118, 32.394764158056546, 32.99495049133625, 33.59518675159293, 34.19542493951406, 34.79560234229173, 35.39564600982714, 35.995477666513494, 36.595018716713035, 37.194195058445956, 37.79294147343755, 38.39120541240141, 38.9889500420456, 39.58615646449714, 40.182825060380814, 40.778975943439335, 41.37464854720132, 41.96990039273978, 42.56480511105486, 43.15944981417899, 43.753931925913115, 44.348355596364684, 44.94282783437758, 45.53745449870101, 46.132336292471216, 46.72756490634143, 47.32321945338438, 47.91936333362312, 48.51604165757357, 49.11327934630701, 49.71108001004333, 50.30942568794995, 50.90827750846392, 51.50757730196061, 52.10725016592923, 52.707207947057015, 53.30735356494692, 53.907586058867054, 54.50780619228843, 55.10792240035986, 55.707856813205595, 56.30755103320732, 56.9069712872611, 57.50611251514738, 58.105000892098666, 58.703694216602, 59.30227952243403], [-1.1294829064743912, -1.1102350089185622, -1.0935772016115477, -1.0805586565157324, -1.072064477191671, -1.068823217189879, -1.0714143328209604, -1.0802756410591388, -1.095710842639172, -1.117897153132098, -1.1468930648108524, -1.1826462423667534, -1.225001538102176, -1.2737090984719046, -1.3284325245292308, -1.3887570441941157, -1.4541976541275705, -1.5242071928777632, -1.5981843141382397, -1.6754813385577463, -1.755411973620308, -1.8372589027184112, -1.9202812557594593, -2.0037219836519116, -2.086815167111121, -2.1687932958538565, -2.248894557031602, -2.3263701714844087, -2.400491813066499, -2.470559140079435, -2.5359074591125554, -2.595915530874578, -2.650013515606401, -2.6976910432320205, -2.7385053814751004, -2.7720896647488225, -2.7981611387324405, -2.8165293711439565, -2.8271043791457817, -2.829904628716336, -2.82506487153165, -2.8128438003895293, -2.7936315244575454, -2.767956889539332, -2.7364946943561472, -2.7000728789724673, -2.659679782497908, -2.616471579592765, -2.5717800034439633], [0.03495, 0.03375837769290259, 0.0303854863279191, 0.025124592430585423, 0.018256033447867786, 0.010047217748162796, 0.0007526246212974097, -0.009386195721471091, -0.020140622147455045, -0.031294962602536426, -0.04264645411116683, -0.05400526277636756, -0.06519448377972953, -0.0760501413814133, -0.0864211889201491, -0.09616950881323674, -0.10516991255654584, -0.11331014072451531, -0.12049086297015424, -0.1266256780250406, -0.13164111369932308, -0.13547662688171888, -0.13808460353951543, -0.13943035871857012, -0.13949213654330916, -0.1382611102167292, -0.1357413820203959, -0.13194998331444505, -0.12691687453758163, -0.12068494520708092, -0.11331001391878684, -0.1048608283471146, -0.09541906524504687, -0.08507933044413732, -0.07394915885450962, -0.06214901446485658, -0.04981229034244009, -0.0370853086330916, -0.024127320561213396, -0.011110506429777879, 0.0017800243796750256, 0.014346233407035412, 0.02637715311362184, 0.037648886882185116, 0.04792460901690606, 0.05695456474339374, 0.06447607020869014, 0.07021351248126725, 0.07387834955102754]], [[30.591751274176097, 31.188732619384652, 31.78576718379528, 32.382868396307174, 32.98003923947512, 33.57727258102889, 34.17455229789813, 34.77185495824893, 35.36915185689949, 35.96641122774144, 36.56360048354891, 37.160688358861265, 37.75764685549013, 38.35445291260456, 38.951089744247334, 39.54754780647667, 40.14382537406, 40.73992872272689, 41.33587192738997, 41.931676299455326, 42.5273694973755, 43.12298435397115, 43.71855747179354, 44.314127643958656, 44.909734162490345, 45.50541507929788, 46.101205486502565, 46.6971358829274, 47.29323069216679, 47.88950699473919, 48.48597353236256, 49.08263003634011, 49.679466924360426, 50.276465400660626, 50.87359798344684, 51.47082947069581, 52.06811834098151, 52.66541856980793, 53.26268182412998, 53.85985997837687, 54.45690787442873, 55.05378622571507, 55.65046454196302, 56.24692392615386, 56.84315956893537, 57.43918273800776, 58.03502203071215, 58.63072362699087, 59.22635024680107], [-1.1294631190378202, -1.1097250376923828, -1.091685719259726, -1.076030713146168, -1.063336338163, -1.054074815085223, -1.048619371943989, -1.047249345166186, -1.0501552960244458, -1.0574441563802244, -1.0691444115270154, -1.0852113219186226, -1.1055321802979838, -1.129931596610768, -1.15817680029974, -1.189982948186668, -1.2250184260948167, -1.2629101334918837, -1.3032487425198058, -1.3455939255612213, -1.3894795486884992, -1.434418831663658, -1.4799094783333797, -1.5254387840469863, -1.5704887289091558, -1.6145410671025997, -1.6570824230713601, -1.6976094049927546, -1.735633744694883, -1.7706874710664096, -1.802328121183478, -1.8301439900264738, -1.853759416006206, -1.872840095833439, -1.887098418844409, -1.8962988080494623, -1.9002630532121758, -1.8988756204816681, -1.8920889237389307, -1.8799285450609684, -1.8624983956450736, -1.8399858141415195, -1.8126666064399481, -1.7809100391875237, -1.7451838081191124, -1.7060590108396019, -1.6642151609223106, -1.6204452846598136, -1.5756611417427067], [0.03495, 0.03416339864290258, 0.03193881325197821, 0.02847253617197589, 0.023952145513240847, 0.018556505151714538, 0.012455764728934643, 0.005811359652035081, -0.0012239889062540255, -0.008506274007606313, -0.015900202948099164, -0.02327919725821377, -0.03052539270283513, -0.03752963928125189, -0.04419150122715664, -0.050419257008645586, -0.05612989932821879, -0.06124913512278011, -0.06571138556363709, -0.06945978605650105, -0.07244618624148724, -0.07463114999311449, -0.07598395542030553, -0.07648259486638681, -0.07611377490908852, -0.07487291636054477, -0.07276415426729302, -0.06980033791027532, -0.06600303080483666, -0.061402510700726144, -0.05603776958209653, -0.04995651366750479, -0.04321516340991103, -0.035878853496679665, -0.02802143284957862, -0.019725464624779344, -0.011082226212857739, -0.002191709238792673, 0.0068373804380324685, 0.015887622723830895, 0.024832883290411965, 0.03353831357518141, 0.041860350781141885, 0.0496467178768902, 0.0567364235966212, 0.06295976244012566, 0.06813831467278939, 0.07208494632559656, 0.07460380919512596]], [[30.58978960234066, 31.18479395630044, 31.779825286667837, 32.37489251789597, 32.97000118578705, 33.56515359833408, 34.16034917966036, 34.755584939140604, 35.35085601550025, 35.94615625298233, 36.5414787735518, 37.13681651557914, 37.732162715510675, 38.327511314690334, 38.9228572787447, 39.51819682177701, 40.11352753203289, 40.70884839969924, 41.30415975107536, 41.89946309651223, 42.494760902251784, 43.09005629861465, 43.68535273888284, 44.280653624706126, 44.87596191492817, 45.47127973538208, 46.06660800744588, 46.66194611297476, 47.25729161263973, 47.852640033697405, 48.447984741792276, 49.043316909548395, 49.63862559243921, 50.23389791973162, 50.8291194051828, 51.424274378627025, 52.01934653562715, 52.6143195979864, 53.20917807312593, 53.80390809513849, 54.39849832473561, 54.99294087931965, 55.58723225803651, 56.1813742198999, 56.775374565916714, 57.369247768576265, 57.96301538407366, 58.55670617419503, 59.15035585587009], [-1.1294095481089061, -1.1091499353795735, -1.0897024166079765, -1.0713908836918753, -1.054484528119535, -1.0392004934803538, -1.0257065219360935, -1.0141235983200936, -1.0045285948989102, -0.9969569190138232, -0.9914051649542083, -0.9878337706000961, -0.9861696786751653, -0.9863090019151131, -0.9881196910988214, -0.9914442047119305, -0.9961021790011306, -1.001893097308827, -1.0085989578206442, -1.0159869391769192, -1.0238120637565649, -1.0318198588007474, -1.0397490158705884, -1.0473340493978027, -1.054307955265745, -1.0604048704335236, -1.0653627345779637, -1.068925954575727, -1.070848072387415, -1.0708944365518775, -1.068844877074635, -1.0644963830288152, -1.057665781715666, -1.0481924177944748, -1.0359408304314321, -1.0208034262773333, -1.0027031460072684, -0.981596122279839, -0.9574743273301298, -0.930368209020657, -0.9003493150449788, -0.8675329060992922, -0.832080560176141, -0.7942027716334581, -0.7541615502630508, -0.7122730271013507, -0.6689100750270887, -0.624504953064398, -0.5795519834921565], [0.03495, 0.03457093879087587, 0.0335018024426904, 0.03184130694391518, 0.029683695042610016, 0.027118736246422945, 0.024231726822590248, 0.021103489797936425, 0.01781037495887422, 0.014424258851404595, 0.01101254478111676, 0.007638162813188149, 0.004359569772384438, 0.0012307492430594993, -0.0016987884308445056, -0.004384006145797231, -0.006784340038680073, -0.00886369948678619, -0.010590467107820571, -0.01193749875989989, -0.012882123541552597, -0.01340614379171897, -0.01349583508975101, -0.01314194625541247, -0.012339699348878928, -0.011088789670737793, -0.009393385761987928, -0.007262129404040314, -0.004708135618717572, -0.0017489926682541304, 0.0015932379447039999, 0.005292021477098806, 0.00931634994546051, 0.013630742125907834, 0.01819524355414761, 0.022965426525474474, 0.027892390094771978, 0.032922760076511424, 0.0379986890447527, 0.04305785633314387, 0.0480334680349205, 0.052854257002907544, 0.057444482849517496, 0.06172393194675126, 0.06560791742619762, 0.06900727917903435, 0.07182838385602694, 0.07397312486752869, 0.07533892238348236]], [[30.58881808355787, 31.182834909851668, 31.77684920070963, 32.37085965098643, 32.964864926097086, 33.558863659507836, 34.15285445030282, 34.74683586094628, 35.34080641536012, 35.93476459743571, 36.52870885009682, 37.122637575027746, 37.716549133176834, 38.31044184614071, 38.90431399852875, 39.49816384140057, 40.09198959686146, 40.68578946389222, 41.27956162547968, 41.8733042571041, 42.467015536627606, 43.0606936556153, 43.65433683210727, 44.24794332484501, 44.841511448940295, 45.43503959295829, 46.02852623736896, 46.6219699743027, 47.2153695285268, 47.808723779538724, 48.40203178465171, 48.995292802925, 49.588506319768946, 50.181672072030345, 50.774790073338856, 51.36786063946919, 51.96088441344686, 52.5538623900975, 53.14679593971096, 53.73968683046151, 54.332537249194786, 54.9253498201606, 55.51812762123754, 56.11087419716219, 56.7035935692406, 57.2962902409841, 57.88896919907465, 58.48163590902712, 59.074296304877016], [-1.1293216713282812, -1.10850744620103, -1.0876210194154354, -1.0666256980285749, -1.045484529810746, -1.0241604317066817, -1.0026163183026349, -0.980815230297126, -0.9587204629728967, -0.9362956946672797, -0.9135051152378122, -0.8903135545194742, -0.8666866107694514, -0.8425907790947991, -0.8179935798578583, -0.7928636870537419, -0.7671710566536977, -0.7408870549077009, -0.7139845865992188, -0.6864382232447915, -0.6582243312308763, -0.629321199880351, -0.5997091694411874, -0.569370758990106, -0.5382907942445467, -0.5064565352770378, -0.4738578041270659, -0.4404871123068308, -0.4063397881988494, -0.37141410434524896, -0.33571140463077775, -0.29923623136405064, -0.2619964522643478, -0.22400338736436912, -0.1852719358427079, -0.1458207028034169, -0.10567212602384207, -0.064852602695885, -0.023392616189913895, 0.018673137125336803, 0.06130562096949965, 0.10446133210265424, 0.14809217309783568, 0.19214532488581315, 0.23656311902128208, 0.2812829096176347, 0.32623694489637056, 0.37135223829724207, 0.41655043909656786], [0.03495, 0.034980061113894845, 0.03507085999933514, 0.035223158104124165, 0.0354375010522914, 0.035714218644092514, 0.036053424856009396, 0.036455017840750094, 0.03691867992724888, 0.03744387762066621, 0.03802986160238875, 0.03867566673002933, 0.039380112037427015, 0.04014180073464704, 0.04095912020798085, 0.04183024201994607, 0.04275312190928653, 0.043725499790972275, 0.04474489975619951, 0.045808630072390666, 0.04691378318319434, 0.04805723570848536, 0.04923564844436473, 0.05044546636315964, 0.0516829186134235, 0.052944018519935895, 0.05422456358370263, 0.05552013548195568, 0.05682610006815325, 0.05813760737197968, 0.059449591599345555, 0.06075677113238766, 0.06205364852946895, 0.06333451052517859, 0.06459342803033194, 0.06582425613197057, 0.0670206340933622, 0.06817598535400081, 0.06928351752960651, 0.07033622241212564, 0.07132687596973074, 0.07224803834682056, 0.07309205386401998, 0.07385105101818018, 0.07451694248237845, 0.07508142510591828, 0.07553597991432942, 0.07587187210936773, 0.07608015106901536]], [[30.58884015628568, 31.182862312194203, 31.776849063091756, 32.370783104724175, 32.96464676336311, 33.55842183820634, 34.15208968773694, 34.745631499055705, 35.339028686182914, 35.932263369978884, 36.525318898658846, 37.11818037387576, 37.71083515301368, 38.303273303670416, 38.89548799130744, 39.48747578570281, 40.07923687615441, 40.67077518934189, 41.26209840736424, 41.853217886722895, 42.44414848191938, 43.03490827988123, 43.62551825362393, 44.21600184540286, 44.80638449111183, 45.39669309884775, 45.98695549538854, 46.57719985482704, 47.16745412376937, 47.75774545734468, 48.348099679783516, 48.938540782504234, 49.52909047149907, 50.119767774329986, 50.7105887152274, 51.30156606462681, 51.89270916697706, 52.4840238478057, 53.075512397828405, 53.66717362834046, 54.25900298822741, 54.85099272868018, 55.4431320970994, 56.035407536727085, 56.62780286325517, 57.220299384033694, 57.81287591954227, 58.405508680502486, 58.99817094740236], [-1.1291990455551941, -1.1077954481682746, -1.0854353953804639, -1.061721771551178, -1.0363117764201375, -1.008914536299002, -0.9792887080983239, -0.9472400757438473, -0.9126191384520936, -0.8753186906181276, -0.8352713935572503, -0.7924473399112224, -0.7468516120834605, -0.6985218365385785, -0.6475257361449681, -0.5939586829299588, -0.5379412536469568, -0.4796167904277033, -0.4191489685256498, -0.356719372771435, -0.29252508388687776, -0.22677627527117733, -0.15969382031470392, -0.09150690974384357, -0.022450677984763634, 0.047236162918670166, 0.11731368366489558, 0.18754309442931805, 0.25768910022071323, 0.3275222571366363, 0.3968213317054031, 0.4653756652987513, 0.5329875452938588, 0.5994745842727457, 0.6646721080923844, 0.7284355531644862, 0.7906428727764656, 0.8511969517917755, 0.9100280286148015, 0.96709612291618, 1.0223934673069595, 1.0759469409351987, 1.1278205028570971, 1.1781176229942627, 1.2269837085008417, 1.2746085233813704, 1.3212285991516004, 1.367129634123158, 1.4126488783908404], [0.03495, 0.03538981085122637, 0.036642323856927006, 0.0386101957826669, 0.04120013151072122, 0.04432288404007534, 0.04789325448642481, 0.051830092082175414, 0.05605629417644312, 0.06049880623505407, 0.06508862184054463, 0.06976078269216138, 0.07445437860586106, 0.07911254751431061, 0.0836824754668872, 0.08811539662967818, 0.09236659328548111, 0.09639539583380372, 0.10016518279086398, 0.10364338078958998, 0.10680146457962009, 0.1096149570273029, 0.11206342911569706, 0.11413049994457153, 0.11580383673040553, 0.11707515480638828, 0.11794021762241938, 0.11839883674510843, 0.11845487185777556, 0.1181162307604508, 0.11739486936987445, 0.11630679171949701, 0.11487204995947925, 0.113114744356692, 0.11106302329471654, 0.108749083273844, 0.10620916891107615, 0.10348357294012431, 0.10061663621141068, 0.09765674769206742, 0.09465634446593627, 0.09167191173357062, 0.0887639828122325, 0.08599713913589521, 0.08344001025524136, 0.08116527383766467, 0.07924965566726858, 0.07777392964486682, 0.07682291778798309]], [[30.58985679787322, 31.18487807285801, 31.779827624946826, 32.37466633382704, 32.969350668497135, 33.56383238546492, 34.158059143677605, 34.75197579420869, 35.34552613122604, 35.93865491793975, 36.531310027119176, 37.12344456039288, 37.71501883389098, 38.306002139816215, 38.896374214179616, 39.48612636014298, 40.07526219410733, 40.66379799782002, 41.2517626743055, 41.839197318336936, 42.42615442346375, 43.012696757315524, 43.598895945057414, 44.18483080752642, 44.77058550579052, 45.35624754769883, 45.94190571448219, 46.52764796665939, 47.11355938842788, 47.69972022837797, 48.28620409175554, 48.87307633558316, 49.46039271269444, 50.04819830409071, 50.636526770939355, 51.22539994794735, 51.81482778871524, 52.404808660972535, 52.99532997529851, 53.58636911504103, 54.17789461768171, 54.769867538891205, 55.36224291002391, 55.954971177868494, 56.547999492155554, 57.14127268167238, 57.73473373388476, 58.32832356574664, 58.92197984492071], [-1.1290413138710684, -1.10701199236203, -1.0831396732622418, -1.05666607040363, -1.0269421441148934, -0.9934232530055419, -0.9556642801210682, -0.9133147231790095, -0.8661137394035221, -0.8138851388564285, -0.7565323248692986, -0.6940331852520777, -0.6264349426770837, -0.5538489765183523, -0.47644563115760613, -0.3944490271991766, -0.3081318921461893, -0.21781042596140554, -0.12383921472885262, -0.02660620256277879, 0.07347227177065407, 0.17595637107903672, 0.28038759047935113, 0.3862935282316826, 0.4931926057782593, 0.600598749012248, 0.708026044960941, 0.8149933893618345, 0.921029140976904, 1.025675797919748, 1.1284947098017737, 1.2290708372252115, 1.3270175671954934, 1.421981589566125, 1.513647835871649, 1.6017444780784094, 1.6860479811315954, 1.7663881999431161, 1.842653508874911, 1.914795950019141, 1.9828363857989135, 2.046869641672511, 2.107069625981231, 2.163694416068675, 2.2170913023950733, 2.267701784965614, 2.3160665182622324, 2.362830201039716, 2.408746404561719], [0.03495, 0.03579921739060979, 0.038212471356768425, 0.04199439596371678, 0.04695793377502496, 0.052924335852592354, 0.05972316175664756, 0.06719227954574847, 0.0751778657767822, 0.08353440550496513, 0.09212469228384287, 0.10081982816529034, 0.10949922369951165, 0.11805059793504016, 0.12636997841873857, 0.13436170119579868, 0.14193841080974176, 0.1490210603024181, 0.15553891121400734, 0.1614295335830184, 0.1666388059462895, 0.17112091533898785, 0.17483835729461036, 0.17776193584498287, 0.1798707635202603, 0.18115226134892728, 0.1816021588577975, 0.1812244940720138, 0.18003161351504826, 0.1780441722087025, 0.17529113367310692, 0.17180976992672184, 0.16764566148633606, 0.16285269736706812, 0.1574930750823658, 0.15163730064400568, 0.14536418856209452, 0.13876086184506717, 0.1319227519996886, 0.12495359903105305, 0.11796545144258316, 0.1110786662360311, 0.1044219089114797, 0.0981321534673398, 0.09235468240035002, 0.08724308670558109, 0.0829592658764324, 0.0796734279046298, 0.07756408928023226]], [[30.591866481185633, 31.188879091965557, 31.785780121151518, 32.38250276494786, 32.978968063408644, 33.57508446962875, 34.17074944077225, 34.765852507204244, 35.36027933997195, 35.95391639800345, 36.54665579492107, 37.138400081423335, 37.72906669273032, 38.318591861429525, 38.90693384391967, 39.494075353205545, 40.08002513173073, 40.66481863498414, 41.24851782960251, 41.831210138536, 42.41300659057654, 42.99403925229282, 43.57445803737216, 44.15442700179175, 44.73412024340331, 45.313717531682705, 45.89339979779901, 46.47334461696615, 47.05372181435018, 47.63468932262558, 48.21638941353165, 48.79894541732281, 49.38245903262478, 49.96700831464982, 50.55264641172907, 51.13940109844119, 51.72727512805523, 52.316247397429535, 52.90627488387245, 53.497295275824655, 54.089230177706916, 54.68198872410715, 55.275471389920845, 55.86957373138369, 56.46418973838822, 57.059214421234806, 57.65454519511451, 58.250081563161466, 58.84572253382136], [-1.1288482067745296, -1.1061553041872274, -1.0807282422445872, -1.0514459063875856, -1.017351939185787, -0.9776475415033129, -0.9316842200944041, -0.8789564394486199, -0.8190941400967248, -0.7518550982653428, -0.6771171185697109, -0.5948700691554007, -0.50520778498238, -0.4083198781669881, -0.30448350347410735, -0.19405513173475508, -0.07746238414584095, 0.044804023571142104, 0.1721981857178575, 0.3041267287660694, 0.4399563322288511, 0.5790210425990262, 0.7206293879984675, 0.8640713137237117, 1.0086249699117638, 1.1535633914640997, 1.2981611166788904, 1.441700794429254, 1.5834798300298192, 1.7228171171617883, 1.8590598975490538, 1.9915907818245913, 2.1198349546758313, 2.243267575521728, 2.3614213733762845, 2.4738944219993484, 2.5803580697766533, 2.6805649888570757, 2.7743573006974493, 2.8616747309921777, 2.942562746465647, 3.01718062936805, 3.0858094525570228, 3.1488599281201077, 3.206880114383959, 3.2605629779861762, 3.310753816802527, 3.3584575523906555, 3.404845892695641], [0.03495, 0.03620732002147536, 0.03977761766867129, 0.04536781583221143, 0.05269739275801111, 0.06149838204727743, 0.07151537265650923, 0.08250550889749711, 0.09423849043732334, 0.10649657229836204, 0.11907456485827894, 0.1317798338500317, 0.14443230036186946, 0.15686444083733336, 0.16892128707525622, 0.18046042622976238, 0.19135200081026812, 0.20147870868148163, 0.21073580306340237, 0.219031092531322, 0.22628494101582378, 0.23243026780278253, 0.23741254753336513, 0.2411898102040297, 0.2437326411665267, 0.24502418112789814, 0.24506012615047743, 0.2438487276518901, 0.24141079240505361, 0.2377796825381762, 0.23300131553475903, 0.2271341642335938, 0.22024925682876537, 0.21243017686964957, 0.2037730632609138, 0.19438661026251688, 0.18439206748971101, 0.17392323991303835, 0.16312648785833292, 0.15216072700672265, 0.14119742839462376, 0.1304206184137475, 0.12002687881109406, 0.11022534668895775, 0.10123771450492433, 0.09329823007186785, 0.08665369655795915, 0.0815634724866576, 0.07829947173671467]]]
best_index = 6
collision_check_array = [ True, True, False, False, False, True, True]

plt.figure(figsize=(25, 10))
path_point_list = []
draw_object(scenario, draw_params={‘time_begin’: 0})
draw_object(planning_problem_set)
for n_path in range(len(paths)):
collision_free = collision_check_array[n_path]
is_best_path = (best_index == n_path)
for n_point in range(len(paths[n_path][0])):
point_state = State()
point_state.position = np.array([paths[n_path][0][n_point], paths[n_path][1][n_point]])
point_state.time_step = n_point
path_point_list.append(point_state)
path_traj = Trajectory(1, path_point_list)
if collision_free and is_best_path:
draw_object(path_traj, draw_params={‘time_begin’: 1, ‘facecolor’: ‘g’})
print(n_path, ‘is green path’)
elif collision_free and (not is_best_path):
draw_object(path_traj, draw_params={‘time_begin’: 1, ‘facecolor’: ‘b’})
print(n_path, ‘is blue path’)
elif not collision_free :
draw_object(path_traj, draw_params={‘time_begin’: 1, ‘facecolor’: ‘r’})
print(n_path, ‘is red path’)
else:
print(‘Error!!!’)
plt.show()

7

My code is attached:

Two issues:

  1. the color of each trajectory was not changed.
  2. some trajectories were not drawn, but for sure the draw_objective function was called.

Output on the screen:

0 is blue path
1 is blue path
2 is red path
3 is red path
4 is red path
5 is blue path
6 is green path

picture:

image2500×1000 119 KB

8

  1. to specify the color, you have to specify it like

    draw_params = {‘trajectory’:{‘facecolor’:‘g’}}
    or
    draw_params = {‘scenario’:{‘dynamic_obstacle’:{‘trajectory’:{‘facecolor’:‘g’}}}}

    as described here https://commonroad.in.tum.de/static/docs/commonroad-io/user/visualization.html#passing-custom-draw-params. Since facecolor exists in multiple objects, you have to specify ‘trajectory’ as well in the first option to specify it unambiguously.

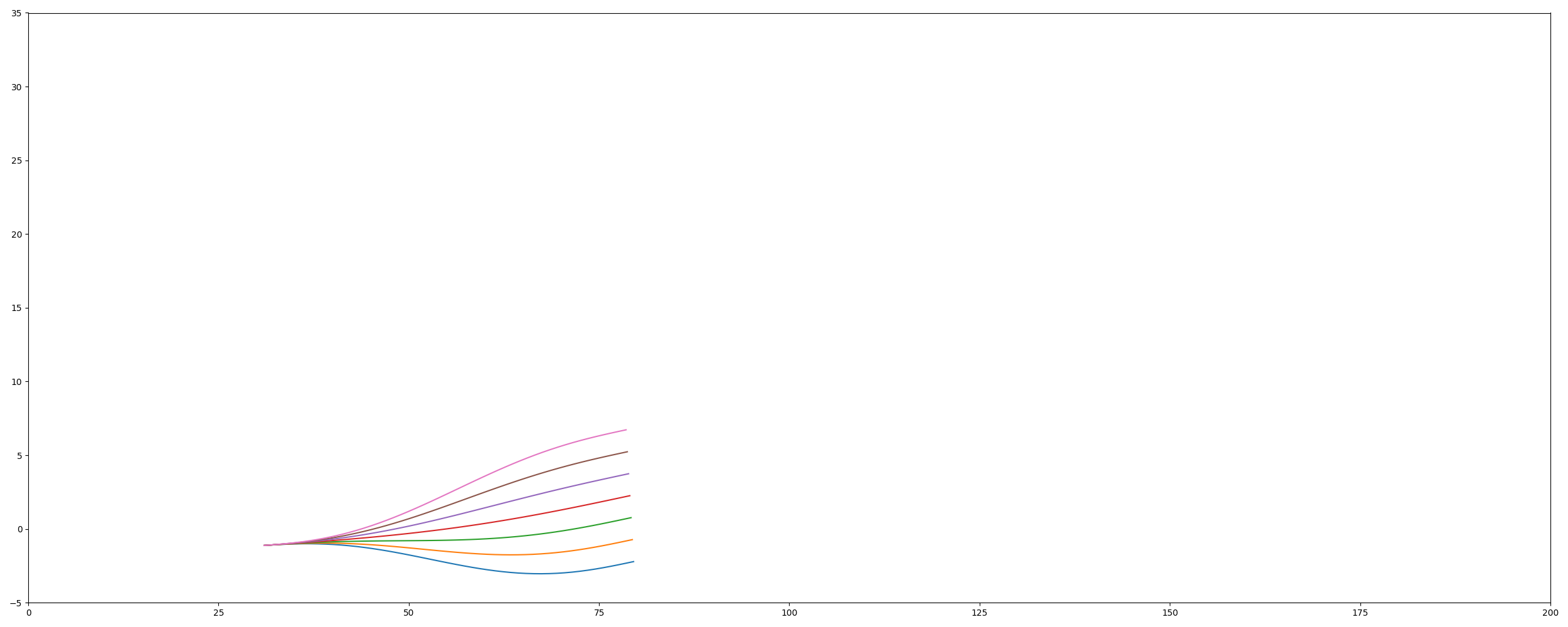

  2. I plotted it without the scenario and there were no hidden trajectories:

    image1092×508 10.9 KB

    However, it seems like you plot the same trajectories multiple times in different colors (just plot inside every outer for loop into a different figure and have a look yourself). I assume this is not caused by commonroad-io.
